Project Description

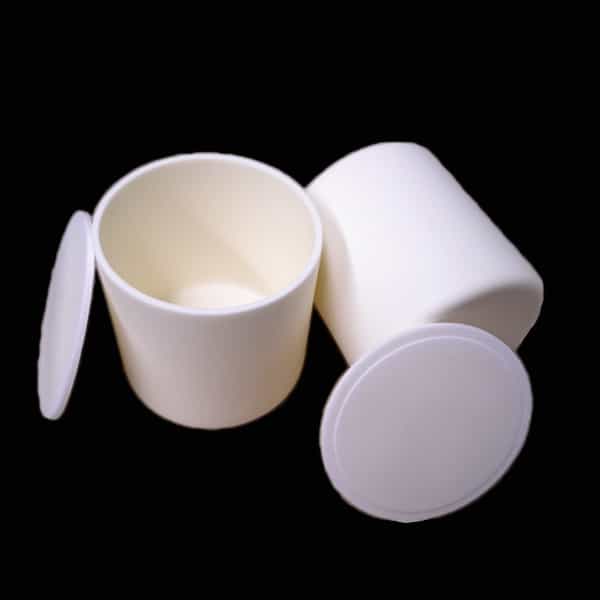

High purity al2o3 crucibles and covers Ceramic Pot wholesale
Offer varies of shape of alumina covers to adapt to your different use requirements,can be tightly covered on the pot, lid is not easy to break with long lifespan.
Product Serial Number:003
Product details:
1)Material: 99.0% purity of Al2O3. Temperature:Long-term use temperature is 1600℃.
2)Application：Schools, Laboratories, Research Institutes and other company which do not need Precise applications.etc.
3)Available Shapes:arc cover with card slot for using with Arc/Square/Rectangle/Cylinder/Crucibles and Boats.
4)Use:High temperature chemical analysis for various metals or nonmetals in labs.
Product Description:
Advantage
1.Excellent corrosion,chemical and wear resistance.
2.Good thermal stability,electrical insulation and air tightness.
3.High working temperature and long lifespan
5.Can be tightly covered on the pot and lid is not easy to break.
About Alumina Ceramic
Alumina lid, containing more than 99% of AL2O3, 99% alumina materials used to make high temperature crucible, tube resistance furnace and special wear-resistant materials, such as ceramic bearing, ceramic seal and water valve, so good chemical corrosion resistance, temperature tolerance, can use for a long time at 1650 ℃, also can use temperature as high as 1800 ℃, but only for short-term use.Alumina crucible has good quick-cooling and quick-heating resistance and is not easy to crack.Because alumina crucible is grouting molding, so the density is high, in the atmosphere of oxidation and reduction, corundum crucible has a good high temperature insulation and mechanical strength, thermal conductivity is large, thermal expansion rate is small, above 1700℃ with air, hydrogen, water vapor, carbon monoxide and so on.
Product Size:
| Alumina Ceramic Disk | ||
| Code | Dia.(mm） | Thickness （mm） |
| BC440 | 21 | 2.2 |
| BC441 | 33 | 2.2 |
| BC442 | 50 | 3 |
| BC443 | 55 | 4 |
| BC444 | 65 | 4 |
| BC445 | 100 | 4 |
| BC446 | 110 | 3.5 |
| Alumina Ceramic Disk | |||
| Code | Outer Dia.(mm) | Inner Dia.(mm) | Height (mm) |
| BC470 | 20 | 17 | 4 |
| BC471 | 30 | 26 | 5 |
| BC472 | 36 | 33 | 4 |
| BC473 | 44 | 41 | 5 |
| BC474 | 46 | 42 | 5 |
| BC475 | 51 | 47 | 8 |
| BC476 | 58 | 54 | 5 |
| BC477 | 66 | 61 | 7 |
| BC478 | 69 | 63 | 11 |
| BC479 | 82 | 76 | 11 |
| BC480 | 89 | 93 | 15 |
| BC481 | 100 | 93 | 17 |
| Alumina Ceramic Disk | ||||
| Code | Max.Outer Dia.(mm) | Min.Outer Dia.(mm) | Depth(mm) | Whole Height(mm) |
| BC500 | 12 | 8.5 | 2.5 | 4.5 |
| BC501 | 14 | 10 | 3.5 | 6 |
| BC502 | 16 | 12 | 4 | 6.5 |
| BC503 | 18.5 | 14.5 | 2 | 4 |
| BC504 | 27 | 22 | 2 | 5 |
| BC505 | 60 | 51 | 2 | 4 |
| BC506 | 78 | 74 | 0.5 | 4 |
| BC507 | 91 | 82 | 0.5 | 3 |
| BC508 | 100 | 89 | 0.5 | 4.5 |
Tips: The size is being updated continuously. If cannot find your need size in above list or need custom it, please contact us directly.
| Physical and chemical property Sheet of alumina crucible industries | |
| Technical characteristic | Numerical value |
| Alumina content | 99% ~ 99.5% alumina |
| Silicon dioxide content | ＜0.2 |
| Usage temperature | Long time in 1600℃ |
| Moh’s hardness | 8 ~9 |
| Volume density | slip casting：3.7~3.9 |
| mechanism of forming: none | |
| hot briquetting: 3.7~3.85 | |
| Water absorption | ＜0.1~0.2 |
| Normal temperature flexural strength | slip casting：200 2000kg/cm2 |
| hot briquetting：150 1500kg/cm2 | |
More product photo of alumina crucible lid:
More details about cone corundum crucible, customed crucibles or need other shape of crucibles, please contact us without hesitation.
